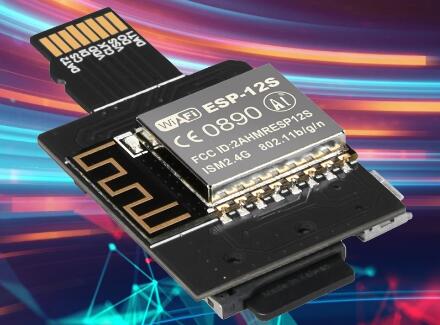

Wifi transmission module wifi image transmission sd card storage​

A Wi-Fi transmission module is an essential component in enabling wireless communication between devices. It is used to transmit and receive data over a Wi-Fi network, commonly employing the IEEE 802.11 standards. These modules are found in various electronic devices, including smartphones, cameras, IoT (Internet of Things) devices, and more.

1.1. Wi-Fi Technology

Wi-Fi, short for Wireless Fidelity, allows devices to connect to a local area network (LAN) without the need for physical cables. The technology operates using radio frequency waves, with devices transmitting and receiving data packets over specific channels. Wi-Fi operates primarily in the 2.4 GHz and 5 GHz frequency bands, although newer technologies such as Wi-Fi 6 (802.11ax) also support the 6 GHz band.

1.2. Components of a Wi-Fi Transmission Module

A typical Wi-Fi transmission module includes the following components:

Radio Frequency (RF) Transceiver: This is responsible for transmitting and receiving signals over the air.

Microcontroller: It controls the operations of the module, including data encoding, encryption, and communication protocols.

Antenna: Transmits and receives radio signals over the air.

Power Supply: Ensures the module has the necessary voltage and current to operate effectively.

1.3. Working Principles of a Wi-Fi Module

Wi-Fi modules work by modulating and demodulating signals to convert data into radio waves that can travel wirelessly. When a device sends data over Wi-Fi, the module converts the digital data into RF signals, which are transmitted through the antenna. On the receiving end, the RF signals are captured, converted back into digital data, and sent to the receiving device. The Wi-Fi module also handles the complex task of error checking and data encryption to ensure secure and reliable communication.

1.4. Types of Wi-Fi Transmission Modules

There are several types of Wi-Fi transmission modules, each designed for specific applications:

Basic Wi-Fi Modules: Used in simpler devices like Arduino or Raspberry Pi for basic data transmission.

Advanced Wi-Fi Modules: Such as the ESP32 and ESP8266. which offer more advanced features like higher speeds, longer range, and better integration with IoT ecosystems.

Dual-Band Wi-Fi Modules: These modules support both the 2.4 GHz and 5 GHz bands, offering better performance in environments with heavy interference.

Wi-Fi Image Transmission

Wi-Fi image transmission refers to the process of sending image data over a Wi-Fi network from one device to another. This technology is commonly used in devices like security cameras, drones, and smartphones, where images or videos need to be transferred wirelessly.

2.1. Image Encoding and Compression

When transmitting images over Wi-Fi, the data is first encoded and compressed to minimize the bandwidth required for transmission. Image compression algorithms such as JPEG or PNG are commonly used to reduce the file size without significantly sacrificing image quality. For video transmission, formats like H.264 or newer H.265 are used to achieve efficient compression and streaming.

2.2. Transmission Protocols for Image Data

Wi-Fi image transmission requires specific protocols to handle the communication. Common protocols include:

Transmission Control Protocol (TCP): Ensures reliable, error-free transmission by checking for lost packets and retransmitting them.

User Datagram Protocol (UDP): Often used in real-time applications like video streaming, where low latency is more critical than ensuring every packet is received.

Hypertext Transfer Protocol (HTTP): Used for web-based applications to request and transfer image files.

Real-Time Streaming Protocol (RTSP): Typically used in live streaming applications like security cameras and drones to transmit video feeds.

2.3. Hardware Requirements for Image Transmission

To transmit images over Wi-Fi, the sending and receiving devices must be equipped with compatible hardware:

Cameras or Image Sensors: These devices capture images and convert them into digital data.

Wi-Fi Modules: As discussed earlier, these are used to transmit data over the network.

Processors and Memory: Devices must have enough processing power to encode, compress, and transmit images in real time.

2.4. Real-World Applications of Wi-Fi Image Transmission

Wi-Fi image transmission is widely used in various applications, including:

Security Cameras: Surveillance systems that transmit video feeds over Wi-Fi to remote devices or cloud storage.

Drones: Drones transmit real-time video and image data to ground control systems.

Medical Imaging: In hospitals, Wi-Fi image transmission allows doctors to access medical images like X-rays or MRIs from anywhere on the network.

IoT Devices: Smart home cameras and doorbell cameras that send image data over Wi-Fi for monitoring and remote access.

SD Card Storage for Wi-Fi Image Transmission

SD cards are commonly used in devices that transmit images over Wi-Fi, as they provide portable and reliable storage for large image and video files. These cards use non-volatile memory to store data, ensuring that the data remains intact even when the device is powered off.

3.1. What Is an SD Card?

An SD (Secure Digital) card is a small, portable storage device used in many electronic devices, including cameras, smartphones, tablets, and more. SD cards come in various capacities, ranging from a few gigabytes to several terabytes, and support different speed classes (Class 10. UHS-I, UHS-II) for varying data transfer speeds.

3.2. How SD Cards Store Data

SD cards use flash memory to store data. Flash memory is made up of cells that can be electrically programmed and erased. Data is written to the card in blocks, and the card can be read from or written to as needed. The primary advantage of SD cards is their speed and durability. Flash memory is resistant to physical shock, making it ideal for portable devices like cameras and drones.

3.3. Writing Image Data to SD Cards

When transmitting an image or video, the data is first encoded and compressed into a digital format. The data is then written to the SD card in chunks. The speed of this process depends on the class of the SD card and the device’s interface. For instance, a UHS-II card offers faster write speeds than a standard Class 10 card, which is important when working with high-resolution images or videos.

3.4. Benefits of Using SD Cards for Image Transmission

Portability: SD cards are small and easy to carry, making them ideal for portable devices.

Storage Capacity: SD cards offer significant storage capacities, allowing large quantities of images and videos to be stored.

Reliability: Flash memory is more durable than other types of memory, providing a reliable storage medium for valuable data.

Easy Integration: Most cameras and other imaging devices come with SD card slots, making them easy to integrate into existing systems.

3.5. Transfer of Data from SD Cards via Wi-Fi

Some devices, such as Wi-Fi-enabled cameras, allow users to access or transfer images stored on SD cards remotely over Wi-Fi. This process involves reading the stored image data from the SD card and then using the device’s Wi-Fi module to transmit the data over the network. The data can then be accessed via a web interface, smartphone app, or cloud service.

3.6. SD Card Formatting and File Systems

To ensure compatibility with devices, SD cards need to be formatted with an appropriate file system. Common file systems for SD cards include:

FAT32: Suitable for cards with capacities up to 32GB, but has a file size limit of 4GB.

exFAT: Supports larger storage capacities and file sizes, commonly used for cards above 32GB.

NTFS: Less common for SD cards, but used in certain high-capacity cards.

The integration of Wi-Fi transmission modules, image transmission technologies, and SD card storage has revolutionized the way we capture, store, and transmit images and videos. Whether used in surveillance, drones, or smartphones, these technologies work together to create seamless and efficient systems for handling large amounts of visual data. Understanding the principles of each component Wi-Fi transmission modules, image encoding, and SD card storage ensures that we can build and maintain more effective and reliable devices for a wide range of applications.
