SD cards on esp32 not working​

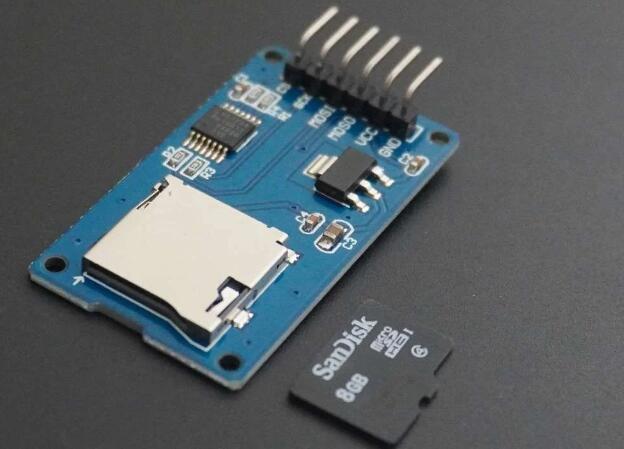

The ESP32 is a powerful and versatile microcontroller that can interface with various external devices, including SD cards. However, there are several reasons why SD cards may not work as expected when used with an ESP32.

Hardware Connections

Power Requirements: SD cards typically require a stable power supply. The ESP32 should be able to provide enough power to the SD card. Make sure that the power pins are properly connected. For most SD cards, the voltage requirement is 3.3V. If the power supply is noisy or insufficient, it can lead to read/write errors or the card not being detected at all.

SPI Connections: The ESP32 usually communicates with the SD card using the SPI (Serial Peripheral Interface) protocol. The SPI pins on the ESP32 need to be correctly connected to the corresponding pins on the SD card. The standard SPI pins on the ESP32 are GPIO (General – Purpose Input/Output) pins, and you need to ensure that the MOSI (Master Out Slave In), MISO (Master In Slave Out), SCLK (Serial Clock), and CS (Chip Select) pins are wired accurately. For example, on many ESP32 boards, GPIO13 is often used as the SCLK pin, GPIO12 as the MISO pin, GPIO15 as the MOSI pin, and GPIO5 as the CS pin. But these pin assignments can vary depending on the specific ESP32 board and the SD card module you are using.

Physical Connection: Check for loose or damaged wires. Even a slightly loose connection can cause intermittent problems. The soldering, if you have soldered the connections, should be of good quality to ensure a reliable electrical connection.

Software Configuration

SPI Library Initialization: In the ESP32’s programming environment (usually Arduino IDE or PlatformIO), you need to correctly initialize the SPI library. The SPI settings such as the SPI mode (mode 0. mode 1. mode 2. or mode 3), clock speed, and data order need to be set appropriately. For example, a common clock speed for SD card communication is around 10MHz – 20MHz. Here’s a sample code in the Arduino IDE to initialize the SPI library for SD card communication:

cpp

#include

#include

const int chipSelect = 5;

void setup() {

Serial.begin(115200);

SPI.begin();

if (!SD.begin(chipSelect)) {

Serial.println(“Card initialization failed!”);

return;

}

Serial.println(“SD card initialized successfully.”);

}

File System Support: The ESP32 needs to have support for the appropriate file system used by the SD card. The most common file system for SD cards is FAT32. The SD library in the programming environment should be configured to work with this file system. If the file system is not recognized correctly, you won’t be able to access or manipulate the files on the SD card.

Common Problems and Solutions

1. Card Not Detected

Cause: Incorrect pin connections or a damaged SD card.

Solution:

Re – check the hardware connections as described above. Make sure the pins are connected to the correct GPIO pins on the ESP32 and that there are no loose wires.

Try a different SD card. If the new card is detected, then the original card may be damaged. You can also try formatting the original card using a card reader on a computer and then re – attempt the connection with the ESP32.

2. Read/Write Errors

Cause:

Incorrect SPI settings such as wrong clock speed or SPI mode.

File system corruption on the SD card.

Insufficient power supply during read/write operations.

Solution:

Adjust the SPI settings. Try different clock speeds and SPI modes. You can start with a lower clock speed (e.g., 10MHz) and gradually increase it to find the optimal setting. For the SPI mode, mode 0 is a common choice for SD card communication.

If you suspect file system corruption, format the SD card using a reliable card – reading software on a computer. Make sure to select the correct file system (usually FAT32) during formatting.

Ensure a stable power supply. You may consider adding a decoupling capacitor near the power pins of the SD card to filter out any noise in the power supply.

3. Slow Read/Write Speeds

Cause:

Low – quality SD card. Some SD cards have lower read/write speeds specified in their specifications.

Inefficient SPI settings such as a very low clock speed.

Overloaded ESP32 system due to other tasks running simultaneously.

Solution:

Replace the SD card with a higher – speed card. Look for cards with higher class ratings (e.g., Class 10 or UHS – I).

Increase the SPI clock speed, but be careful not to exceed the maximum speed supported by the SD card and the ESP32’s SPI interface.

If the ESP32 is overloaded, consider optimizing the code to reduce the load. For example, you can use non – blocking or asynchronous programming techniques to handle other tasks more efficiently so that more resources are available for SD card operations.

Advanced Troubleshooting

Using Diagnostic Tools: Some SD card modules come with diagnostic LEDs. These LEDs can provide valuable information about the card’s status. For example, a blinking LED may indicate that the card is in the process of being accessed, while a steady – on LED may mean that the card is idle. Additionally, in the programming environment, you can use debug statements to print out error codes and other relevant information. For example, the SD library in Arduino IDE returns error codes when there is a problem with card initialization or file access.

Firmware and Library Updates: Make sure that your ESP32’s firmware is up – to – date. New firmware versions may include bug fixes and improvements related to SD card handling. Also, keep an eye on updates to the SD card libraries you are using. These updates can enhance performance and compatibility.

Troubleshooting SD card issues on the ESP32 requires a combination of checking the hardware connections, configuring the software correctly, and understanding the common problems and their solutions. By following the steps and tips outlined in this guide, you should be able to resolve most of the SD card – related problems and get your ESP32 – SD card combination working effectively. It’s important to be patient and methodical during the troubleshooting process, as even a small oversight in the connections or settings can lead to SD card failures.
