Recover data from raid disk​

​RAID (Redundant Array of Independent Disks) is a popular technology used to combine multiple hard drives into a single logical unit for data redundancy, performance improvement, or both. RAID configurations are used in both consumer and enterprise settings to ensure that data is protected from hard drive failures, as well as to improve system performance.

However, despite the advantages of RAID, data loss can still occur due to various factors such as hardware failure, human error, or software corruption. When data is lost from a RAID array, recovery can be challenging and requires careful procedures to minimize further damage and maximize the chances of restoring lost files.

1. RAID and Common RAID Configurations

RAID configurations are generally divided into levels, each offering a different combination of performance, redundancy, and fault tolerance. The most common RAID levels are:

RAID 0 (Striping)

RAID 0 splits data into chunks and distributes them across two or more disks, which improves read and write performance. However, it does not provide redundancy; if one disk fails, all data is lost.

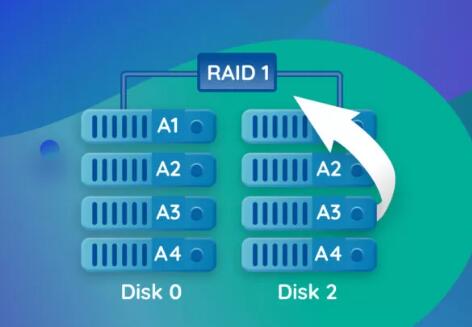

RAID 1 (Mirroring)

RAID 1 mirrors the data from one disk onto another, providing data redundancy. If one disk fails, the system can continue to function using the other disk, making RAID 1 ideal for data protection. However, it does not improve performance.

RAID 5 (Striping with Parity)

RAID 5 provides both performance improvement and data redundancy by striping data across three or more disks, with parity data stored on one disk. If one disk fails, the parity information can be used to rebuild the lost data.

RAID 6 (Striping with Double Parity)

RAID 6 is similar to RAID 5 but with an additional parity block, which allows the array to tolerate two simultaneous disk failures.

RAID 10 (1+0)

RAID 10 combines the features of RAID 1 and RAID 0. It provides data redundancy through mirroring and improved performance through striping, but it requires at least four disks. It is often used in environments where both speed and reliability are critical.

RAID 50 and RAID 60

RAID 50 combines RAID 5 with RAID 0. offering a balance between performance and redundancy. RAID 60 combines RAID 6 with RAID 0 for similar benefits but with greater fault tolerance.

Each RAID configuration has its pros and cons, and the level of redundancy or fault tolerance will determine how critical data loss is and how difficult it will be to recover from a failure.

2. Common Causes of Data Loss in RAID Arrays

Despite the inherent redundancy in many RAID configurations, data loss can still occur. The following are some common causes:

2.1 Hardware Failures

Hardware failures are the most common cause of data loss in RAID arrays. These can include:

Disk Failure: A single disk in the array may fail, especially in RAID 0 or RAID 5.

RAID Controller Failure: The RAID controller that manages the disks may malfunction or fail entirely.

Power Surges: Power surges or fluctuations can damage the array or cause corruption.

2.2 Human Error

Accidental deletion of files, improper shutdowns, or incorrect configurations can lead to data loss. In some cases, RAID arrays are mistakenly reconfigured or formatted, resulting in data becoming inaccessible.

2.3 Software and Firmware Corruption

RAID software or firmware bugs can sometimes cause the array to become unstable or corrupt. This can result in data being unreadable, particularly if the RAID array is software-managed rather than hardware-managed.

2.4 RAID Rebuild Failures

If one or more disks fail in a RAID array, the array will attempt to rebuild itself using parity information or mirroring. If a rebuild fails, data can be lost or corrupted, particularly if additional disks fail during the rebuild process.

2.5 Bad Sectors and File System Corruption

Bad sectors on hard drives or file system corruption can lead to data loss in a RAID array. This is particularly problematic in RAID 5 and RAID 6. where parity data can become invalid if a bad sector or corruption is not handled properly.

3. Steps for Recovering Data from a RAID Disk

3.1 Assess the Situation

The first step in recovering data from a RAID disk is to assess the situation carefully. Before attempting any recovery, it is crucial to understand the RAID level, the nature of the problem, and the specific data loss scenario.

Identify the RAID Level: Knowing the RAID level will help determine the type of redundancy and fault tolerance available.

Determine the Failed Disk(s): If possible, identify which disk(s) have failed. This information will guide the recovery process.

Document the Configuration: Make sure to document the configuration of the RAID array, including disk sizes, order, and partition structure.

3.2 Don’t Overwrite Data

Once data loss is detected, avoid using the RAID array for writing new data, as this may overwrite the data you are trying to recover. Instead, power off the system immediately to prevent further damage to the array.

3.3 Use RAID Recovery Software

Panda Assistant is a versatile data recovery software designed to help users retrieve lost, deleted, or inaccessible files from a variety of storage devices. Whether you’re dealing with a hard drive, SSD, USB drive, memory card, or even RAID arrays, Panda Assistant provides a powerful solution to recover files in a simple and efficient manner. Its user-friendly interface makes it suitable for both novice and advanced users, while its robust recovery algorithms ensure a high success rate in retrieving valuable data.

One of Panda Assistant’s standout features is its ability to perform deep scans on storage devices to uncover files that may have been lost due to accidental deletion, formatting, virus attacks, or even physical damage. It supports a wide range of file types, including documents, photos, videos, and emails, making it a versatile tool for both personal and professional use.

The software supports multiple operating systems, including Windows, macOS, and Linux, ensuring broad compatibility with various devices and file systems. It also allows for selective file recovery, giving users the option to preview files before restoring them, which helps in minimizing recovery time and maximizing data retrieval.

3.4 Handle Complex Recovery Scenarios

In some cases, the RAID recovery software may not be able to restore the data, especially in complex failure scenarios. Here are some additional steps you can take:

Rebuild the RAID Array: In cases of single-disk failure, you may be able to replace the faulty disk and rebuild the array. However, this is only possible in configurations like RAID 1. RAID 5. and RAID 6. where redundancy exists.

Check Parity and Rebuild: If the RAID has failed during a rebuild or if the parity is corrupted, some tools offer a feature to reconstruct the RAID from the available data and parity.

3.5 Use Professional RAID Recovery Services

If software-based recovery methods fail or if the data loss is severe, it may be time to consult professional data recovery services. These services specialize in dealing with complex RAID failure scenarios and have the tools and expertise to handle hardware-level failures.

Professional services may offer the following:

RAID Rebuilding: Rebuilding the array using specialized tools.

Disk Imaging: Creating an image of the failed disks to preserve data before attempting recovery.

Advanced Data Recovery: Techniques for recovering data from physically damaged or corrupt disks.

4. Preventing Future Data Loss

Once you’ve successfully recovered your data, it’s essential to take steps to protect your RAID array from future data loss:

Regular Backups: Make regular backups of important data. While RAID provides redundancy, it should not be considered a substitute for backups.

Monitor RAID Health: Use software tools to monitor the health of your RAID array and alert you to potential failures before they occur.

Replace Faulty Disks Promptly: If you notice any issues with your RAID disks, such as slow performance or read/write errors, replace the faulty disk as soon as possible to prevent further damage to the array.
