How to format an sd card for raspberry pi​?

To format an SD card for a Raspberry Pi, there are several key steps that need to be followed to ensure the card is properly set up. This guide will cover the entire process, from preparing the SD card to formatting it and installing the operating system, including tips, troubleshooting steps, and alternatives if you encounter issues.

The Raspberry Pi, a versatile and affordable single-board computer, has revolutionized the world of DIY projects, educational tools, and embedded systems. As with any computer, it requires storage to function properly, and for the Raspberry Pi, that storage comes in the form of an SD card. However, before the SD card can be used with your Raspberry Pi, it must be correctly formatted to ensure it works seamlessly with the operating system (OS) and other configurations. Whether you are setting up a new Raspberry Pi or preparing to use an existing SD card for a new project, it’s crucial to format the SD card correctly to avoid issues.

Before diving into the formatting process, let’s first discuss what the Raspberry Pi requires from its SD card. This will help ensure you have the right setup before starting the procedure.

Capacity: The Raspberry Pi can use SD cards with a storage capacity ranging from 8GB to 256GB. The official Raspberry Pi website recommends at least an 8GB card for running Raspberry Pi OS, although larger cards will provide more storage space for your applications and projects.

File System: The Raspberry Pi primarily uses the FAT32 or exFAT file systems for the SD card. FAT32 is widely compatible and is recommended for most users. However, when using larger cards (32GB or more), exFAT may be required for efficient storage management.

Speed: While not strictly necessary, choosing a high-speed SD card (Class 10 or UHS-1) will ensure that the Raspberry Pi performs well, especially when it comes to booting up or running applications that require significant data read/write operations.

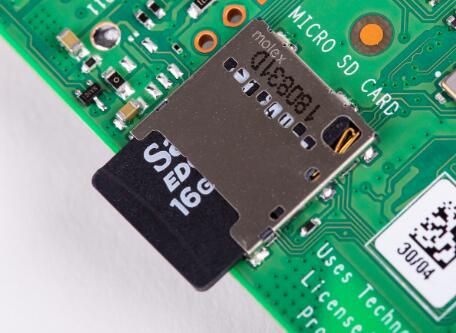

Card Type: The Raspberry Pi supports both microSD cards and SD cards, but microSD cards are more commonly used due to their small size and higher storage capacities. The microSD card should be inserted into the Pi via an SD card slot.

Preparing the SD Card for Formatting

Before you begin the actual formatting process, make sure the SD card is unmounted and ready for use. If the SD card has been used previously with another device, you may want to remove any existing partitions or data that are no longer needed.

Step 1: Backup Any Important Data

If the SD card is not new and contains data you want to keep, be sure to back it up before proceeding. Formatting the SD card will erase all of its contents, so any files, images, or documents stored on the card will be lost if you don’t make a backup.

Step 2: Ensure the SD Card is Unmounted

For safety reasons, the SD card must be unmounted before you can format it. On some systems, the SD card may automatically mount when inserted, so you may need to manually eject or unmount it from the system.

On Windows, you can unmount the card by ejecting it from the file explorer.

On macOS, right-click the SD card icon on the desktop or Finder and select Eject.

On Linux, use the umount command in the terminal.

Once unmounted, you can proceed with formatting the card.

Methods for Formatting the SD Card

Now that your SD card is ready, we’ll go over the three main methods for formatting an SD card for Raspberry Pi, which depend on the operating system you are using.

Method 1: Formatting the SD Card on Windows

Windows provides an easy-to-use tool for formatting SD cards, which will allow you to select the correct file system and partition style for the Raspberry Pi.

Step 1: Insert the SD Card into Your Computer

Use an SD card reader if your computer does not have a built-in SD card slot. Insert the SD card into the reader and connect it to the computer.

Step 2: Open the Format Tool

Open File Explorer.

Right-click on the SD card in the “This PC” or “Devices and Drives” section.

Select Format from the context menu.

Step 3: Choose File System

In the Format window, you will need to set the following parameters:

File System: Choose FAT32 (recommended for SD cards up to 32GB) or exFAT (recommended for cards over 32GB).

Allocation Unit Size: Leave this set to the default setting.

Volume Label: You can choose any name for the card, but something simple like “Raspberry Pi” is often used.

Step 4: Start the Formatting Process

Click Start to begin formatting. A warning message will appear, reminding you that all data on the card will be erased. Click OK to proceed.

Once the formatting is complete, you can safely eject the SD card and proceed with installing the Raspberry Pi OS.

Method 2: Formatting the SD Card on macOS

macOS also offers an easy way to format SD cards using the built-in Disk Utility tool.

Step 1: Insert the SD Card into Your Mac

Insert the SD card into your Mac’s card reader or SD card slot.

Step 2: Open Disk Utility

Open Disk Utility by searching for it in Spotlight (Command + Space).

Select the SD card from the list on the left side of the window.

Step 3: Choose the Format Settings

Click Erase at the top of the Disk Utility window.

In the Format dropdown, select MS-DOS (FAT) (which is the equivalent of FAT32) for cards up to 32GB or ExFAT for cards larger than 32GB.

Name the card (e.g., “Raspberry Pi”).

Step 4: Erase the Card

Click Erase to begin the formatting process. Once the process is complete, the SD card will be formatted and ready for use with your Raspberry Pi.

Method 3: Formatting the SD Card on Linux

Linux provides a robust set of tools for formatting SD cards, including both graphical tools and command-line utilities.

Step 1: Insert the SD Card into the Computer

Use a card reader if your computer does not have a built-in SD card slot.

Step 2: Open GParted (Graphical Tool)

If you are using a Linux distribution with a graphical interface, you can use GParted to format the SD card.

Open GParted from your application menu (you may need to install it if it’s not already installed).

Select the SD card from the list of drives.

Right-click on the existing partition(s) and select Delete.

Once the partitions are deleted, click Apply.

Step 3: Create a New Partition

Right-click on the unallocated space and select New.

Set the File System to FAT32 or exFAT, depending on the size of your card.

Click Add and then Apply to commit the changes.

Step 4: Mount and Eject

Once the SD card is formatted, you can safely mount it and proceed with your Raspberry Pi OS installation.

Installing the Raspberry Pi OS on the SD Card

After formatting your SD card, the next step is to install the Raspberry Pi OS. You can do this using several methods, including using the Raspberry Pi Imager or manually downloading the image file and flashing it to the SD card.

Using the Raspberry Pi Imager

Download and install the Raspberry Pi Imager from the official Raspberry Pi website.

Insert the SD card into your computer.

Open the Raspberry Pi Imager, select the OS you want to install (e.g., Raspberry Pi OS), and select the SD card as the target.

Click Write to begin the flashing process. Once completed, the SD card will be ready for use with your Raspberry Pi.

Manually Flashing the Raspberry Pi OS

If you prefer to manually download the image, you can use a tool like Etcher or dd (on Linux) to write the image to the SD card.

Troubleshooting Common Issues

SD Card Not Showing Up: If the SD card is not showing up in your computer’s file manager, ensure it is properly inserted and unmounted. You may also try using a different card reader or checking for driver updates.

Format Failed: If you receive an error during formatting, try using a different tool or check if the SD card has physical write protection enabled.

Corrupted SD Card: If the SD card becomes corrupted and cannot be formatted, try using a low-level formatting tool or consider replacing the card if it is physically damaged.

Formatting an SD card for a Raspberry Pi is a simple yet crucial step in ensuring the smooth operation of your Pi. By following the steps
