How to disable write protection on sd card​?

Disabling write protection on an SD card is a critical process when you encounter errors related to file modification or storage limitations. Write protection is a feature built into SD cards to prevent accidental deletion or corruption of data. However, there may be instances where you need to remove write protection to add, modify, or delete files.

Write protection is a mechanism that prevents data from being altered or erased on a storage device. This can be both a physical and software based security feature. It is a useful feature when you want to ensure that data on your SD card remains intact, especially in critical scenarios. However, when you need to update or delete data on the card, write protection can be a frustrating barrier.

SD cards usually have two types of write protection:

Physical Write Protection: This is controlled via a small switch on the side of the SD card. When enabled, it prevents any modification or deletion of data on the card.

Software Write Protection: This can be caused by issues with the SD card itself, the file system, or the device being used. It may manifest due to errors or intentional settings that prevent changes to the files.

Methods to Disable Write Protection on SD Cards

1. Physically Unlocking the Write Protection Switch

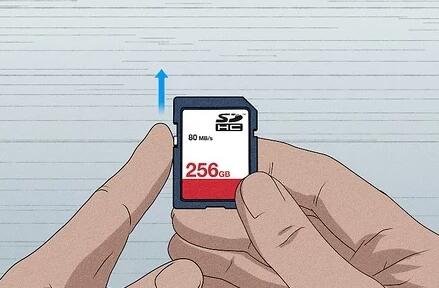

The most straightforward way to disable write protection is by toggling the physical switch on the SD card itself. Many SD cards, especially older ones, have a small slider switch on the side. This switch controls the write protection setting.

Locate the Switch: On most SD cards, the switch is located on the left side, near the bottom. It is usually marked with two positions: “Lock” and “Unlock.”

Slide the Switch: If the switch is in the “Lock” position, it will enable write protection. To disable it, simply slide the switch to the “Unlock” position.

Once the switch is in the unlocked position, the SD card should no longer be write-protected. You can now add, modify, or delete files as needed.

Note: Some SD cards might not have this physical switch, especially newer versions. In such cases, you will need to rely on software solutions.

2. Using a Windows PC to Disable Write Protection

If the SD card has no physical switch or if the switch is malfunctioning, you can use your computer to disable write protection. In Windows, this is typically done through either the disk properties or the Command Prompt.

2.1 Using Disk Properties

Insert the SD Card: Plug the SD card into your computer using an SD card reader.

Open ‘This PC’: Navigate to “This PC” or “My Computer” on your computer.

Right-Click on the SD Card: Find the SD card under the “Devices and Drives” section, right-click on it, and select “Properties.”

Go to the ‘Security’ Tab: In the Properties window, click on the “Security” tab. This will show the permissions set for the SD card.

Check for Permissions: Ensure that the permissions for writing and modifying files are set correctly. If they are not, click the “Edit” button and modify the permissions.

Click ‘Apply’: After changing the permissions, click “Apply” to confirm your changes.

2.2 Using Diskpart Command

For a more advanced method, you can use the Diskpart tool in Windows, which allows you to manage disks directly through the Command Prompt.

Open Command Prompt as Administrator:

Press Windows + X and select “Command Prompt (Admin)” or “Windows PowerShell (Admin).”

Launch Diskpart:

Type diskpart and press Enter to launch the Diskpart tool.

List All Disks:

Type list disk and press Enter. This will show all the disks connected to your computer.

Select the SD Card:

Find your SD card in the list and note the disk number. For example, if your SD card is listed as Disk 2. type:

bash

select disk 2

Remove Write Protection:

Type the following command to remove the write protection:

arduino

attributes disk clear readonly

Press Enter. This command will disable the write protection on the selected disk.

Exit Diskpart:

Type exit and press Enter to close Diskpart.

Once you’ve cleared the readonly attribute, the SD card should be free from write protection.

3. Using a Mac to Disable Write Protection

If you’re using a Mac, disabling write protection involves a few steps that are somewhat similar to Windows.

3.1 Using Disk Utility

Insert the SD Card: Plug the SD card into your Mac using an SD card reader.

Open Disk Utility: Navigate to Applications > Utilities > Disk Utility.

Select the SD Card: In the left panel, locate your SD card and select it.

Check Permissions: Under the Info section, check if the SD card is locked. If it’s locked, you should see an option to unlock it.

Unlock the SD Card: If the SD card is locked, click on the Unlock button and enter your password if prompted.

3.2 Using Terminal to Disable Write Protection

If the issue persists, you can use Terminal to try and disable write protection.

Open Terminal: Navigate to Applications > Utilities > Terminal.

List Disks: Type the following command to list all disks:

diskutil list

Find Your SD Card: Identify your SD card in the list. It will typically be named something like /dev/disk2.

Unmount the SD Card: Type the following command to unmount the SD card:

bash

sudo diskutil unmountDisk /dev/disk2

(Replace disk2 with the appropriate disk number.)

Remove Write Protection:

To disable the write protection, type the following:

bash

sudo mount -o rw /dev/disk2s1 /Volumes/SDCard

Replace disk2s1 with the appropriate partition.

Exit: After successfully running these commands, the SD card should no longer be write-protected.

4. Using Registry Editor in Windows

In some cases, write protection on an SD card is enforced by Windows through the system registry. You can disable write protection by editing the Windows registry, but this should be done with caution.

Open the Registry Editor:

Press Windows + R to open the Run dialog.

Type regedit and press Enter.

Navigate to the Write Protection Key:

Go to the following path:

mathematica

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\StorageDevicePolicies

Modify the Write Protection Value:

On the right side, look for a value named WriteProtect.

Right-click on it and select Modify.

Change the value from 1 (enabled) to 0 (disabled).

Restart the Computer: After editing the registry, restart your computer for the changes to take effect.

5. Formatting the SD Card

If none of the above methods work, you may need to format the SD card. Formatting the SD card will erase all data, so ensure that you back up any important files before proceeding.

Insert the SD Card: Plug your SD card into your computer.

Open ‘This PC’ (Windows): Right-click on the SD card and select Format.

Choose the File System: Select the appropriate file system (FAT32. exFAT, NTFS).

Start the Format: Click Start to begin the formatting process.

For Mac users, the steps are similar through Disk Utility.

Note: Formatting will remove write protection but will also erase all data on the SD card. If you have important data, make sure to recover it first.

Write protection on an SD card is often an essential feature to preserve data integrity, but it can also be a source of frustration when you need to modify the files. Whether the write protection is caused by a physical switch, software settings, or file system errors, there are multiple methods to remove the restriction. By following the solutions outlined in this guide, you should be able to disable write protection and regain full access to your SD card, whether you are using a Windows PC, Mac, or other devices.
