HD sentinel how to scan used hard drive for errors​

Hard drives, whether they are brand new or previously used, are susceptible to various types of failures over time, particularly due to wear and tear or improper handling. Used hard drives, in particular, can have accumulated bad sectors, file system errors, or physical wear that may lead to data loss if not addressed. This is where HD Sentinel, a comprehensive hard drive monitoring software, comes into play. It offers a way to scan and detect errors that could compromise the health of your hard drive.

1. Importance of Hard Drive Health

Hard drives are crucial components of any computer system, storing important data, operating systems, applications, and user files. However, hard drives are also mechanical devices with moving parts (in the case of HDDs), which makes them susceptible to physical wear and mechanical failure. Over time, hard drives can develop bad sectors, slow down, or even fail completely, which can result in permanent data loss if not detected and addressed early.

Hard drive health is typically monitored by two main factors:

SMART (Self-Monitoring, Analysis, and Reporting Technology): A system built into most modern hard drives that monitors several parameters of the drive to detect potential failures.

Bad Sectors: These are portions of the drive that can no longer reliably store data.

When scanning for errors on a used hard drive, it’s critical to monitor both SMART attributes and bad sectors. HD Sentinel is a powerful tool designed specifically to help you monitor these attributes and more.

2. What Is HD Sentinel and Why Use It?

HD Sentinel (Hard Disk Sentinel) is a popular software tool designed to monitor the health and status of hard drives, both traditional mechanical HDDs and solid-state drives (SSDs). It provides real-time monitoring, detailed reports, and various testing and diagnostic options to help users understand the condition of their drives and take preventive measures before problems occur.

Key Features of HD Sentinel:

Health Monitoring: Displays the current health status of the hard drive using a percentage score based on SMART attributes.

Temperature Monitoring: Tracks the operating temperature of the drive to prevent overheating.

Bad Sector Scan: Checks for bad sectors or other potential errors on the disk.

Performance Benchmarking: Provides a performance score to compare the drive’s performance against its rated speeds.

Alerts and Notifications: Sends alerts via email or visual indicators if the drive’s health or performance drops below a threshold.

For users with used hard drives, HD Sentinel’s capabilities are invaluable. A used drive may already have accumulated a variety of errors that need to be identified and rectified before they lead to more serious issues.

3. Preparing for the Scan

Before you run a scan on your hard drive, there are a few steps you should follow to ensure that the process goes smoothly:

Back Up Your Data: If you’re using a used hard drive that holds important data, it’s always a good idea to back up your files before running a scan. This way, if anything goes wrong, your data will be safe.

Check the Connection: Ensure that the hard drive you want to scan is properly connected to your computer. If it’s an external drive, check the cables and ports for any issues.

Install HD Sentinel: If you haven’t already, download and install HD Sentinel from the official website. It is compatible with Windows, and a free trial version is available. For full features, you can purchase the pro version.

4. Step-by-Step Guide to Scanning a Used Hard Drive for Errors Using HD Sentinel

Once you’ve prepared the hard drive and installed HD Sentinel, follow these steps to scan your drive for errors.

Step 1: Launch HD Sentinel

After installing the software, open HD Sentinel. Upon launch, the software will automatically detect all the connected storage devices on your system, including internal and external hard drives, SSDs, and USB drives.

Step 2: Select the Drive to Scan

In the HD Sentinel interface, you’ll see a list of your connected drives along with their health status. This will include the health percentage and the current temperature of each drive. Click on the used hard drive you want to scan. The software will display detailed information about the selected drive, such as the manufacturer, model, capacity, and firmware version.

Step 3: Review SMART Attributes

Before running a full scan, it’s a good idea to check the drive’s SMART attributes. These attributes provide insight into the overall health of the drive. In the main window, you’ll see a list of SMART attributes such as:

Reallocated Sectors Count: Shows how many sectors have been moved to spare sectors due to errors.

Current Pending Sector Count: Indicates how many sectors are waiting to be reallocated.

Uncorrectable Sector Count: Lists the number of sectors that cannot be corrected or read.

Any of these attributes being above a certain threshold can indicate that the drive is starting to fail, even if the drive seems to be operating normally at first.

Step 4: Run the Health Test

HD Sentinel offers a “Health Test” feature that can be used to perform a non-destructive check of the drive. To initiate this test, click on the “Test” tab in the main window, then select the “Health Test” option. This test will provide an overall score based on the drive’s current health status and SMART data.

Normal Test: Runs quickly and checks for major issues.

Extended Test: This test is more comprehensive and takes longer, thoroughly checking all sectors and SMART attributes.

After the test is complete, HD Sentinel will provide a summary of the drive’s health, including any issues detected during the scan. If any critical errors are found, it’s advisable to back up your data immediately and consider replacing the drive.

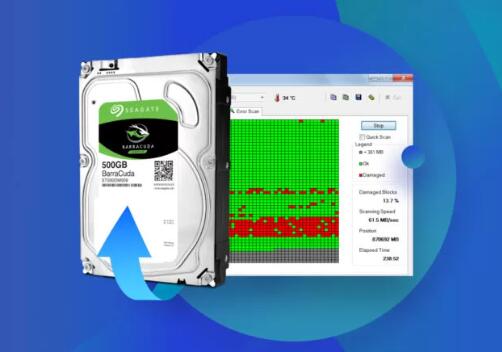

Step 5: Scan for Bad Sectors

To check for physical damage to the drive, you can run a bad sector scan. This process scans the entire disk and marks any bad sectors, which are areas on the drive that are no longer able to reliably store data. Here’s how to perform a bad sector scan:

Click on the “Test” tab in HD Sentinel.

Select “Surface Test.”

Choose the “Read test” or “Write test” options depending on whether you just want to identify errors (read test) or also attempt to fix them (write test).

If you choose the write test, make sure you back up any important data, as the write test will overwrite the data on the drive in an attempt to correct any bad sectors.

The software will then begin scanning the drive’s surface, sector by sector, for potential errors. Depending on the size of the drive, this could take several hours.

Step 6: Review the Results

After the surface test is complete, HD Sentinel will provide a report of the results. If bad sectors were found, they will be marked in red, and you’ll be given the option to attempt repairs (if applicable).

It’s important to note that while the software can mark bad sectors and attempt repairs, it cannot always fix physical damage to the disk. If the number of bad sectors is increasing over time, it’s a sign that the drive is deteriorating and should be replaced as soon as possible.

5. Interpreting the Results

Once the scan is completed, HD Sentinel will display the results in a clear, easy-to-understand format. Here are some key things to look for:

Health Status: A percentage score will indicate the overall health of the hard drive. A score of 100% is ideal, while anything below 80% signals that the drive may be failing.

Bad Sectors: If you notice a high number of bad sectors or increasing bad sectors, this is a sign that the drive is physically deteriorating.

SMART Warnings: If HD Sentinel reports any SMART warnings (such as reallocated or uncorrectable sectors), these are serious indicators that the drive may fail soon.

6. Taking Action Based on the Scan Results

Once you’ve scanned the drive and interpreted the results, you may need to take action based on what you find. Here are some possible actions:

Backup Data: If your drive has bad sectors or any SMART warnings, backup your data immediately. The drive may be on the verge of failing.

Fix Errors (if possible): If HD Sentinel reports correctable errors or bad sectors that can be marked as “good,” use the software’s repair features to attempt a fix. However, don’t expect it to fix hardware failures.

Consider Replacing the Drive: If the health score is below 80% or if there are a significant number of bad sectors, it may be time to replace the drive to avoid catastrophic failure.

7. Preventative Measures

To prevent future issues with your hard drive, here are a few best practices:

Regular Scans: Run HD Sentinel regularly (every month or two) to monitor your drive’s health and catch potential issues early.

Proper Cooling: Ensure your hard drive has adequate ventilation and cooling to prevent overheating, which can damage the drive over time.

Use Disk Health Alerts: Set up HD Sentinel to send you alerts if your drive’s health drops below a certain threshold, allowing you to take action before it’s too late.
