Troubleshooting SD Card Reading Errors on the ESP32

The ESP32 microcontroller is a popular choice for many embedded systems due to its robust performance, low power consumption, and built-in Wi-Fi and Bluetooth capabilities. One common use case for the ESP32 is interfacing with SD cards to read and write data, particularly for logging sensor data or storing files. However, like any hardware and software interaction, reading data from an SD card with the ESP32 can occasionally present errors. Understanding these errors and troubleshooting them efficiently is key to ensuring smooth operation in your project.

1. Overview of SD Cards on the ESP32

The ESP32 has a dedicated SPI (Serial Peripheral Interface) bus that supports communication with SD cards. Typically, you will use an SD card formatted with the FAT16 or FAT32 file system to interface with the ESP32. When you attempt to read or write to the card, the microcontroller will issue commands to the card via the SPI interface.

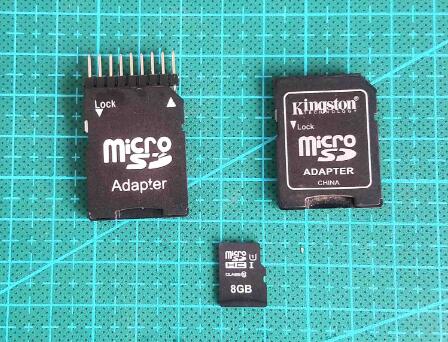

The most common SD card module used with the ESP32 is the microSD card module, which connects to the ESP32 via SPI or SDIO (Serial Data Input/Output). SPI mode is widely used for simplicity and versatility in interfacing with external devices.

Despite its ease of use, there are several potential reasons why the ESP32 may encounter issues when reading from an SD card. These issues can be software-related, hardware-related, or a combination of both.

2. Common Causes of SD Card Reading Errors

2.1 Incorrect Wiring

One of the most common issues in working with an SD card on the ESP32 is improper wiring. If the connections between the ESP32 and the SD card module are incorrect, the device will fail to communicate with the card, leading to read errors. Some common wiring mistakes include:

Wrong SPI Pin Connections: The ESP32 communicates with the SD card via SPI, so the MOSI, MISO, SCK, and CS (Chip Select) pins must be correctly wired to the SD card module. Refer to the ESP32 datasheet for correct pin mappings for SPI.

Loose or Poor Connections: Breadboards or jumper wires may not always provide a stable connection, which can lead to intermittent issues. This can sometimes manifest as sporadic SD card errors.

2.2 Power Supply Issues

The ESP32. like any microcontroller, requires a stable power supply to function correctly. SD cards require a stable 3.3V or 5V power supply depending on the card type, and any fluctuation in voltage can cause the SD card to malfunction. This can result in read errors, corruption, or even failure to initialize the SD card.

Insufficient Power Supply: If your SD card is powered through the ESP32’s 3.3V pin and you’re using a high-capacity SD card or running multiple peripherals off the same supply, the card may not get enough power.

Noisy Power Lines: Noise in the power supply, often caused by other devices on the same power rail, can introduce errors during data transfers, leading to read failures.

2.3 SD Card Format Issues

The ESP32 supports SD cards formatted with FAT16 or FAT32 file systems. If your SD card is formatted using a different file system (e.g., exFAT or NTFS), the ESP32 may fail to read it.

Formatting Errors: If the SD card is improperly formatted, even with FAT16 or FAT32. you may encounter read errors. This can happen if the card is formatted on a computer without ensuring compatibility with the ESP32.

Corruption: Over time, frequent write cycles or improper ejection of the SD card can lead to file system corruption, causing read errors when the ESP32 tries to access the data.

2.4 Card Type and Capacity

Not all SD cards are the same. The ESP32 may have trouble with certain types or sizes of SD cards. The most commonly supported card types are microSD cards, but there are still limitations:

High-Capacity Cards (SDXC): The ESP32 may have issues with high-capacity SD cards (e.g., SDXC cards with capacities over 32GB) as they are formatted with exFAT by default. This file system is not supported out of the box by the ESP32. and you may need to reformat the card to FAT32 using a computer.

Card Quality: Not all SD cards are created equal. Lower-quality or counterfeit cards can lead to consistent read errors and unstable performance.

2.5 SPI Communication Errors

The ESP32 uses SPI to communicate with the SD card. While SPI is widely supported and generally reliable, it is sensitive to timing and data integrity. The following issues can result in SPI communication errors:

SPI Clock Speed: The ESP32 can communicate with SD cards at relatively high clock speeds. However, certain cards may have difficulty keeping up with high SPI speeds, leading to errors. Lowering the clock speed can help alleviate these problems.

Interrupts: The ESP32 has multiple interrupts running, and if any interrupts interfere with the SD card’s SPI communication, you may encounter errors.

3. Diagnosing SD Card Reading Errors

3.1 Checking Serial Output

One of the first steps in diagnosing SD card reading issues is to check the serial monitor output. The ESP32 typically outputs detailed error messages when it fails to initialize the SD card or encounters a read error. These messages can help pinpoint the root cause of the issue.

Error Messages: Common error messages include “SD Card Mount Failed,” “Card Initialization Failed,” or “SPI Error.” These messages can help you determine whether the problem is related to power, wiring, or software configuration.

3.2 Testing with a Known Good SD Card

Testing with a different SD card that is known to work with the ESP32 can help rule out issues with the card itself. If the new card works without errors, then the issue is likely with the original card.

Format the Card Correctly: Ensure the card is formatted with FAT16 or FAT32. and test it again.

3.3 Re-Testing with Lower SPI Speed

If you’re encountering communication errors, try lowering the SPI clock speed. You can do this in your code when initializing the SD card module. A lower SPI speed can help improve the stability of the communication, especially if you’re using a low-quality card or a card with a smaller capacity.

4. Solutions to Fix SD Card Reading Errors

4.1 Re-Wire the Circuit

Double-check all wiring connections between the ESP32 and the SD card module. Ensure that the SPI pins (MISO, MOSI, SCK, and CS) are correctly wired. You may also want to consider using a more stable connection, such as soldering the connections or using a shielded wire for better signal integrity.

4.2 Use a Different Power Supply

To ensure stable power delivery to both the ESP32 and the SD card, try using a separate power supply for the SD card. If you’re powering everything from the ESP32. it might be unable to supply enough current to the SD card, leading to read errors.

Powering the SD card separately: Use a dedicated 3.3V or 5V regulator for the SD card to avoid power fluctuations.

4.3 Format the SD Card Correctly

Reformat the SD card to FAT32 or FAT16 using a computer before using it with the ESP32. Be sure to use the correct format, as ESP32 libraries are optimized for FAT file systems.

Reformatting Steps: Use tools like SD Formatter (recommended by the SD Association) to ensure the card is formatted correctly.

4.4 Use Compatible SD Cards

Check that the SD card you are using is compatible with the ESP32. Preferably, use microSD cards that are known to work well with the ESP32. typically those with a capacity of up to 32GB and formatted as FAT32.

4.5 Adjust SPI Settings

You can adjust the SPI settings in your code to reduce the clock speed and increase the communication reliability between the ESP32 and the SD card. Lower the SPI speed and retest the card reading functionality.

cpp

#include #include void setup() { Serial.begin(115200); if (!SD.begin()) { Serial.println(“Card initialization failed.”); return; } Serial.println(“Card initialized successfully.”); }

4.6 Use a Library with Better SD Card Support

The ESP32’s libraries for SD cards, such as SD.h, might not work perfectly with all SD cards. Consider using other libraries that offer more robust support for SD card communication. The SdFat library is one such example, which provides improved compatibility with various SD card types and capacities.

SD card reading errors on the ESP32 can be caused by a variety of factors, from wiring issues and power supply problems to file system incompatibilities and SPI communication errors. By systematically diagnosing the issue, ensuring proper wiring and power delivery, and using compatible SD cards, you can resolve most SD card-related issues on the ESP32.

Additionally, using appropriate software libraries and adjusting settings like the SPI clock speed can help improve stability and performance when working with SD cards. With these troubleshooting tips and solutions, you should be able to get your SD card module working reliably with the ESP32 for your next project.
